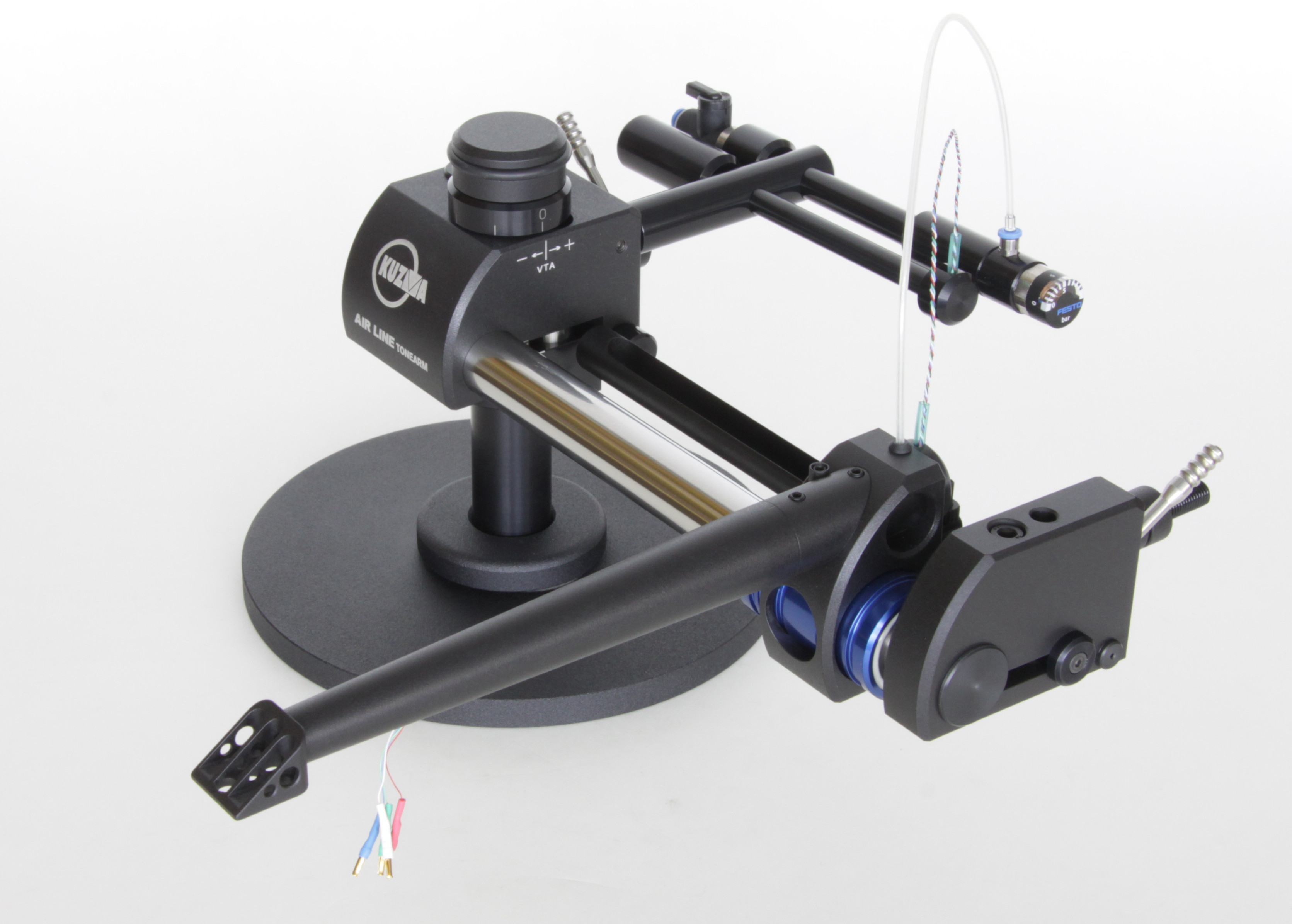

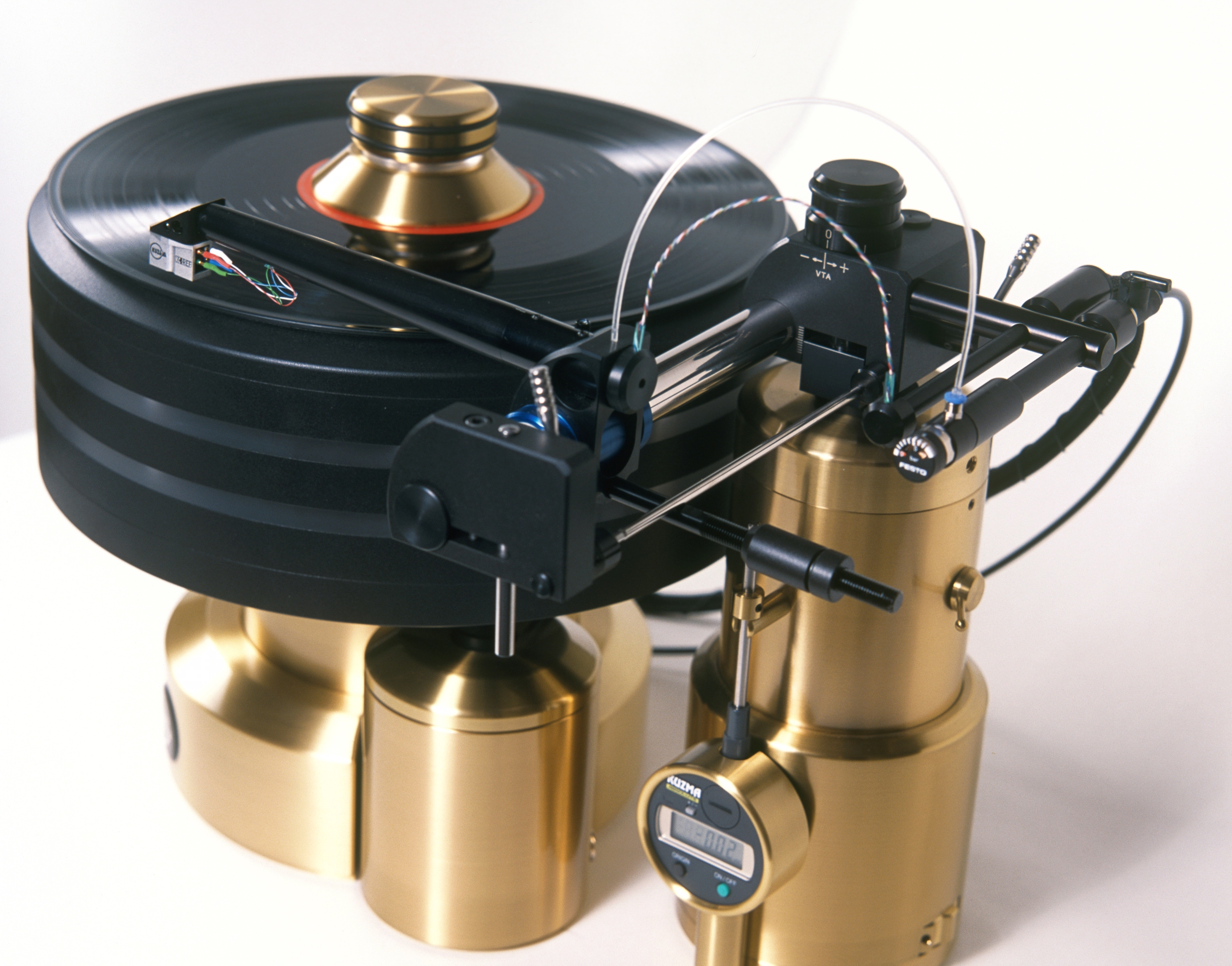

KUZMA AIR LINE-Linear tracking air bearing tonearm: Effective length: 184 mm
Fixing distance: 212 mm-Kuzma cutout
Effective mass: 13 gr vertical
Recommended cartridge compliance: Below 25 cu
Minimum clearance below platter: 30 mm
Height adjustment: Yes

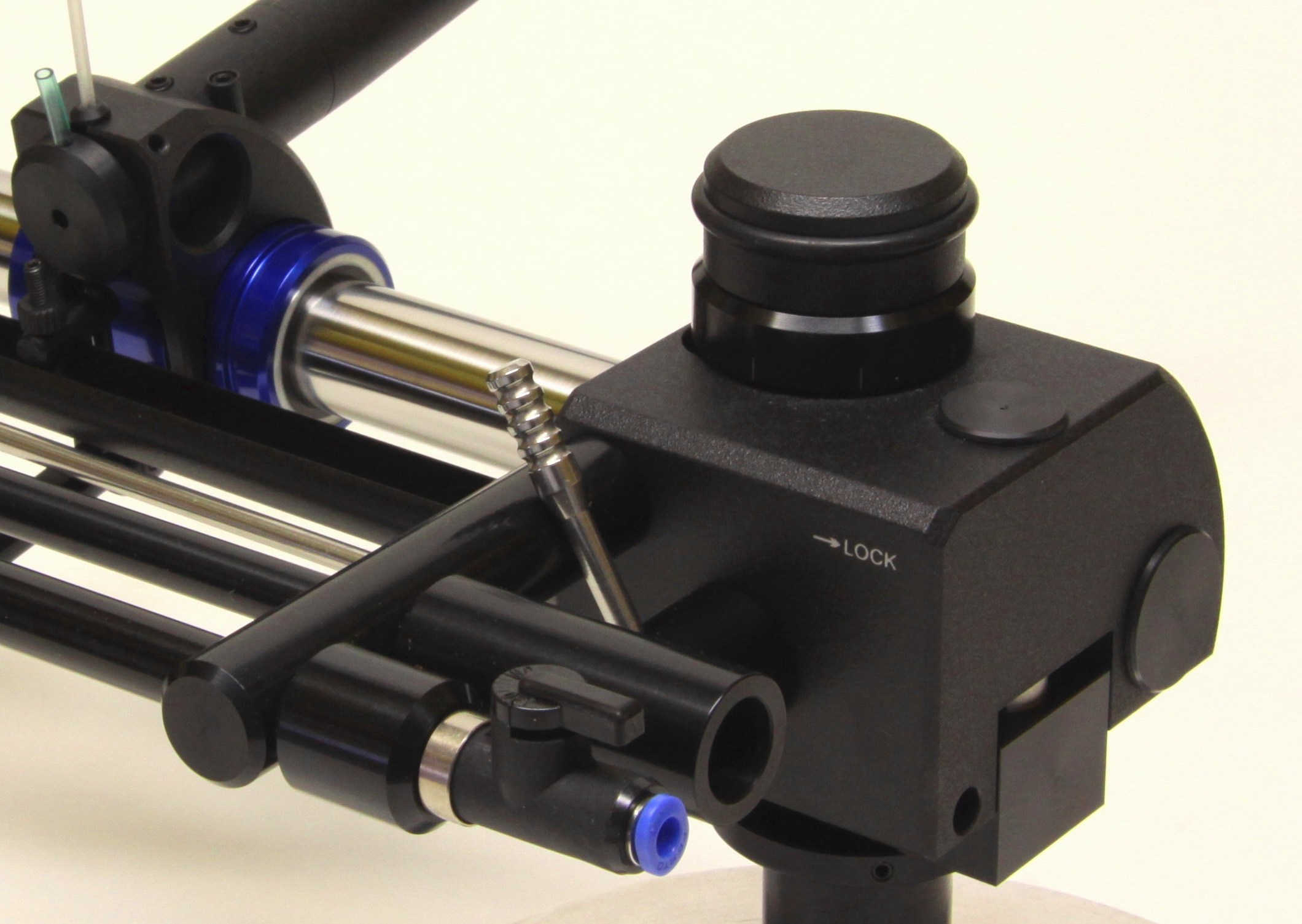

VTA fine adjustment: 10 mm
Azimuth fine adjustment: Yes
Air bearing: Diameter 20mm x 50 mm
Load axial or radial: 30 N (aprox 3 kg)
Air pressure: 4 bar ( 60 psi )
Air consumption: 4 L/min
Mass: 2 Kg
|
|
