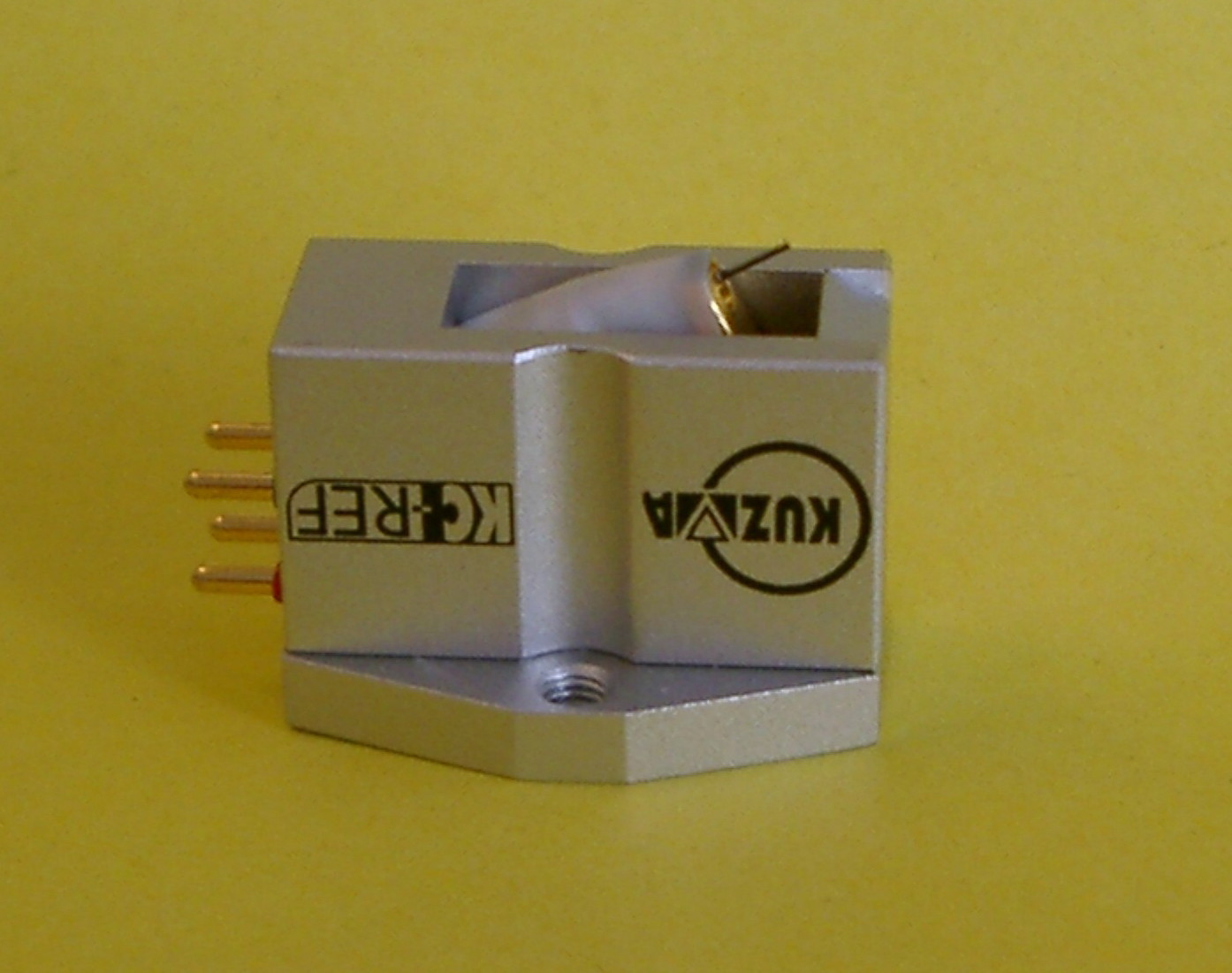

Type: Moving Coil stereo phonograph cartridge
Magnetic Circuits: Powerful samarium cobalt magnet and soft iron armature with High purity OFC coils
Output Voltage: 0.5mV at 1Khz under 5cm/sec velocity
Cantilever: Aluminum-cladded boron
Stylus: 7x18 microns diamond elliptical
Tracking Force: 1.8-2.0 grams
Compliance: 9 cu
Body: Special aluminum alloy housing
Loading Impedance: 100-2000 Ohm
Frequency Response: 10-50.000 Hz
Channel Balance: 1.5dB at 1 Khz
Channel Separation: 30dB at 1 Khz
Weight: 9 grams
Break-in period: min. 40 hours
|
|
